Services provided include: PCB layout, software design, PCB manufacturing, SMT, PCB assembly, prototyping, PCBA testing, material procurement, injection molds, injection molding production parts, product assembly, packaging and other services.
Why choose us:
1. About us
(1) We provide one-stop PCAB/PCB manufacturing services
(2) 20 years of turnkey ODM/OEM experience
(3) We can provide F4B, F4BK, Teconic, Arlon, Rogers material printed circuit boards
(4) Timely customization of pcb and PCBA according to your BOM list and Gerber files.

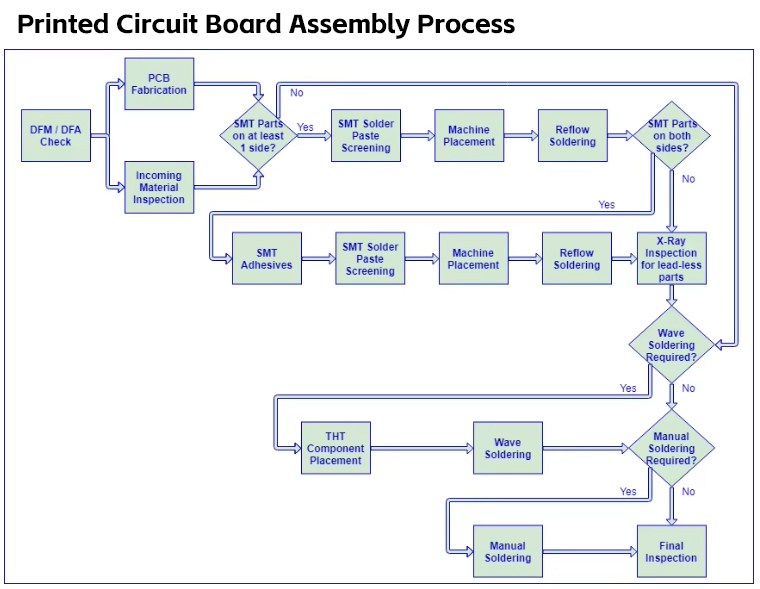

2. Detailed terms of PCB assembly
Technical requirements:
(1) Professional surface mounting and through-hole soldering technology
(2) Various sizes such as 1206, 0805, 0603 component SMT technology
(3) ICT (circuit test), FCT (functional circuit test) technology
(4) PCB assembly with UL, CE, FCC, Rohs certification
(5) Nitrogen reflow soldering technology for SMT.
(6) High standard SMT and solder assembly line
Origin | Guangdong,China |
Brand | HRPCBA |
Copper thickness | 0.5oz,1oz,2oz,3oz,4oz |
Minimum aperture | 0.1 |
Minimum line width | 0.1 |
Minimum line spacing | 0.1 |
Surface treatment | LEAD FREE HASL |
Board specifications | 0.1 |

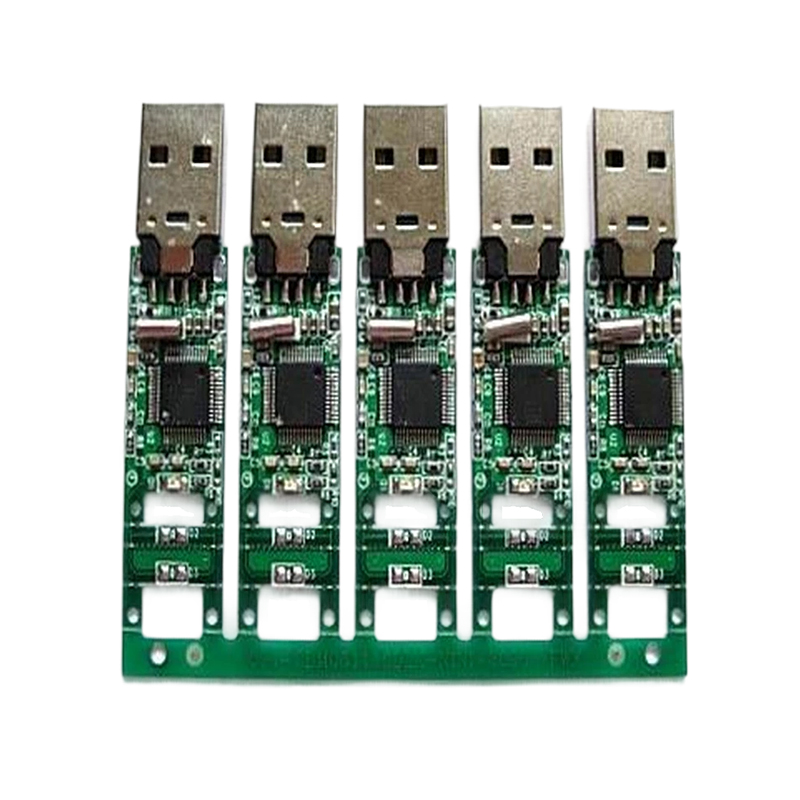

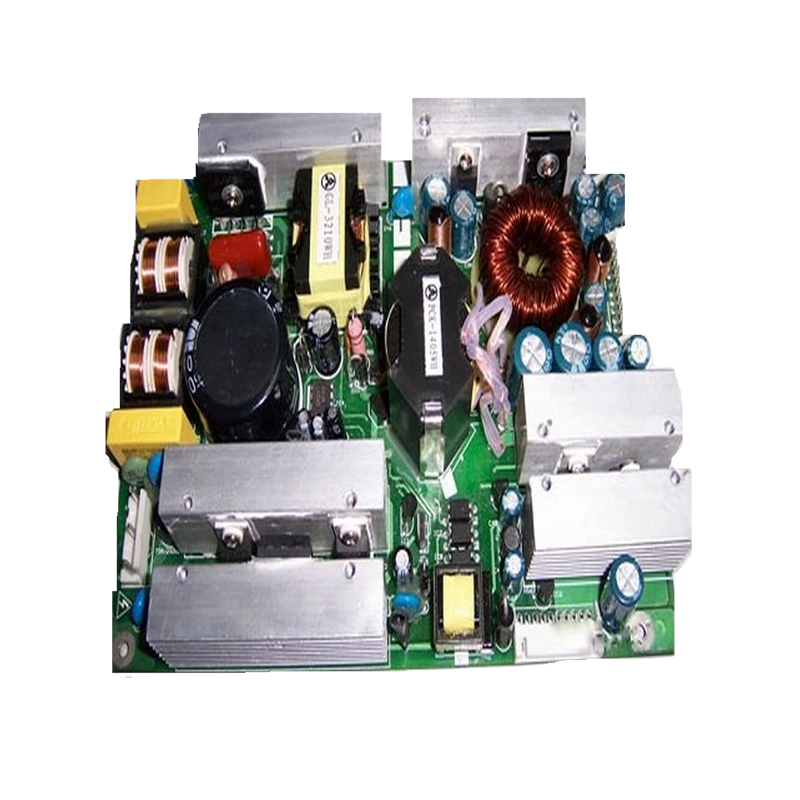

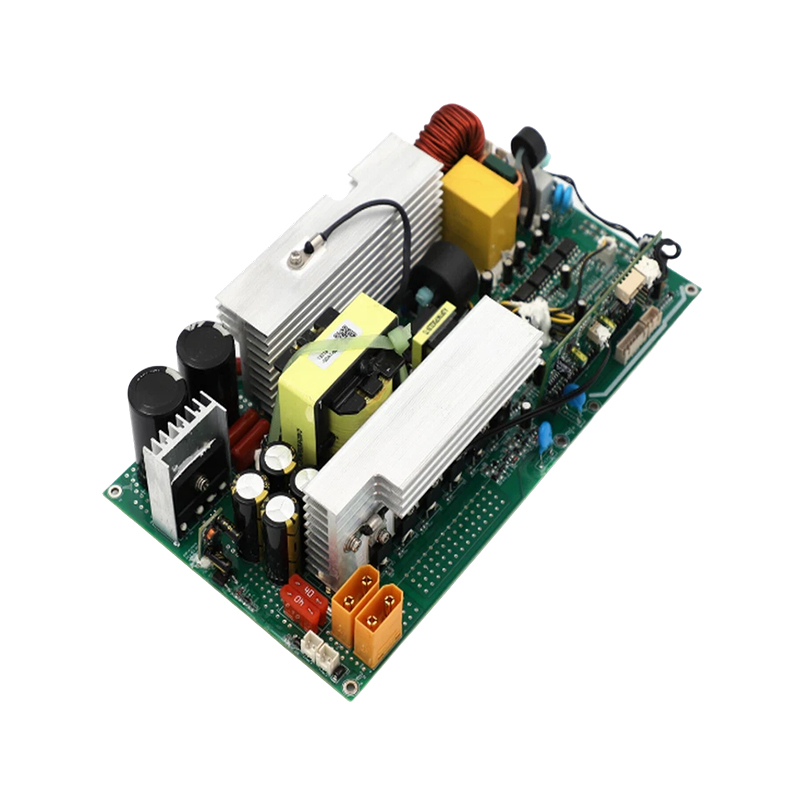

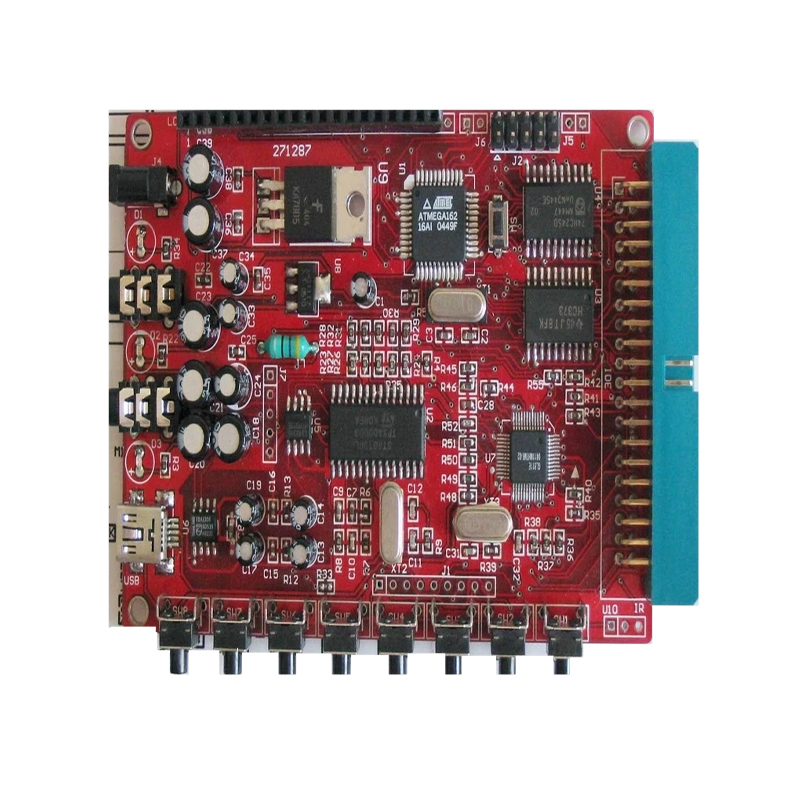

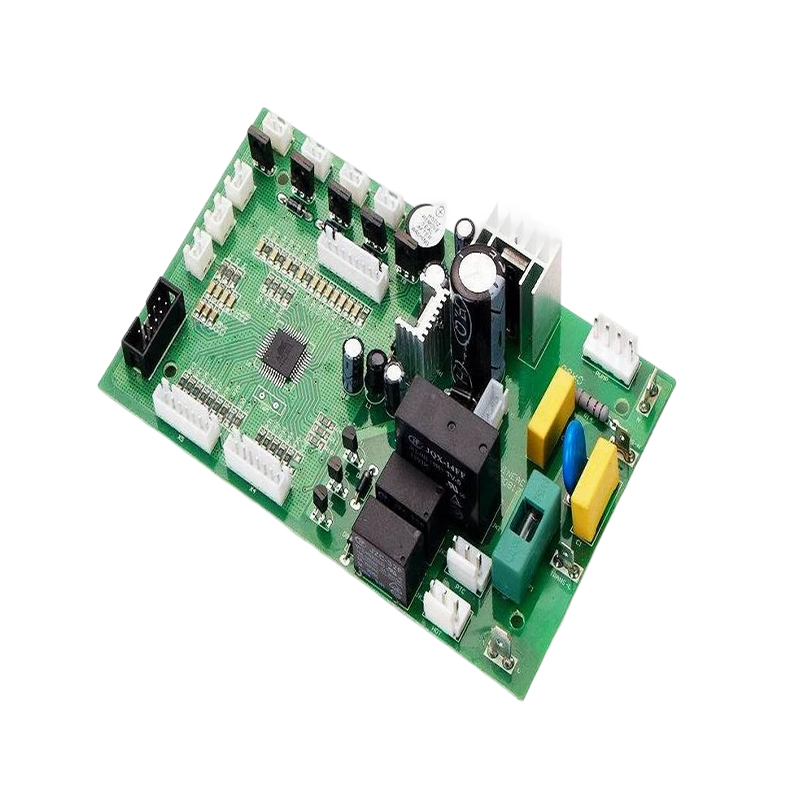

Product name | Pcb Board Assembly |
Customization Support | Yes |
Base Material | FR4,FR1-4 |
Board Thickness | 0.6MM,0.4mm-3.2mm |
Copper Thickness | 0.5oz,1oz,2oz,3oz,4oz |
Layer | 1-58 Layers |
Certificate | ISO9001/RoHS/CE |
Surface Finishing | HASL LEAD FREE |
Solder mask color | Green,White |
Personalized requirements | Please contact us |
One-stop electronics manufacturing services |
OEM Service |
Layer | 1-58Layers | Copper weight | 0.5021202 |
Material | FR4.CEML.CEM3,high tg,94v0,
etc.Board Shape | Sheet cutting | Cut,V-score,tab routing |
Board Type | Rigid,bendable,rigid-bendable | Silkscreen printing | Singlesided and double-
sided green LPI,etc. |
Board Shape | Rectangle,circle,slot,cutout,etc | Design file format | Gerber,Eagle |
Boad Thickness | 0.2-8.0room meters,elasticity
0.01-0.25” | Born format | Excel,PDF |
